MPI/OpenMP hybrid parallelization in LIGGGHTS¶

Motivation¶

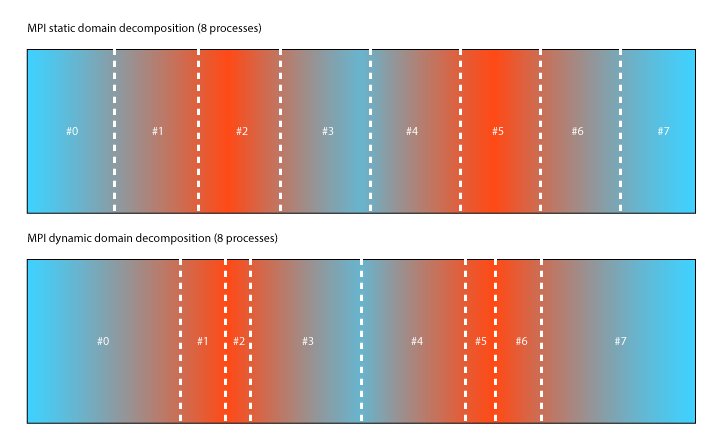

The MPI/OpenMP hybrid parallelization in LIGGGHTS is a new way to achieve better load-balancing within simulations. Traditional MPI simulations can only be load-balanced using fix/balance. The following figure illustrates how static 8x1 decomposition might look like. In this example colors are used to show areas which require high amount of computational work (red) in contract to other areas which leave processors idle (blue). Using a static decomposition processes the boundaries of the domain can become idle quickly. To avoid this, MPI dynamic load balancing was introduced with fix/balance. It adjusts the boundaries making sure each subdomain has an equal amount of particles in them.

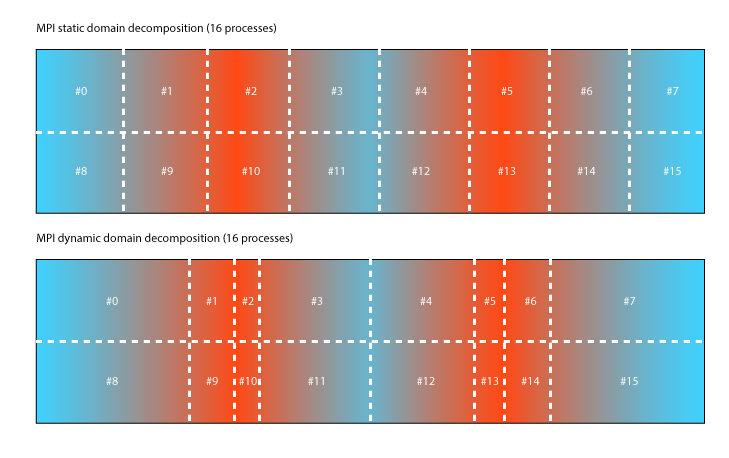

MPI load-balancing works very well with simple decompositions. However load-imbalance remains a dominant issue if higher number of cores used. At some point decomposing along one dimension alone will no longer add any benefit. Adding a cut to additional dimensions will only work well if the load is symmetric. The following figure shows how the symmetric testcase can easily be computed using 16 processes in stead of 8 by adding another decomposition along the y-Axis.

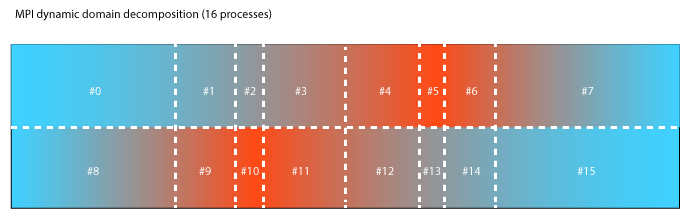

Unsymmetrical loads are very difficult to decompose. The margin of error is significant. Simulations can take 2x-4x more time if decompositions are chosen poorly and MPI load-balancing used improperly. The following illustrates a simulation which is harder to decompose because the cuts in space span the entire domain.

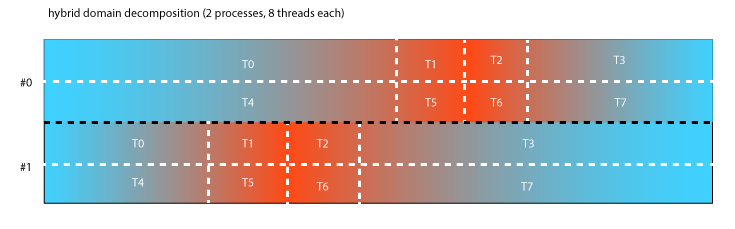

A hybrid parallelization which uses MPI and OpenMP allows us to reduce the amount of MPI processes and let automatic partitioning figure out a good decomposition inside our subdomains. In our next Figure we show how the hybrid can use only two MPI processes to cut the domain in half along the y-Axis and then partitions the subdomains among 8 threads. In other words, our hybrid parallelization adds a second layer of parallelization to LIGGGHTS which is more flexible and does automatic load-balancing.

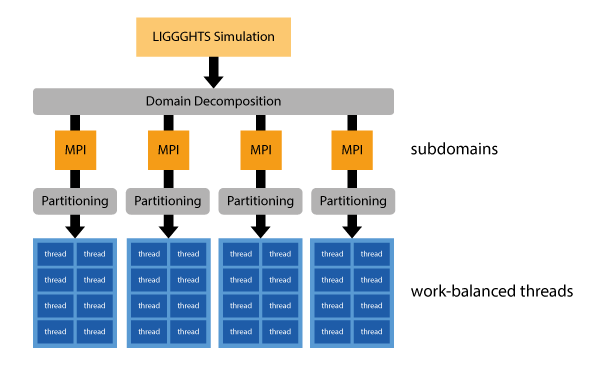

The main idea behind using a hybrid parallelization therefore is to first split the domain into large, potentially MPI-load-balanced portions. Each MPI subdomain is then further partitioned for a given number of threads.

Installation¶

The hybrid parallelization is implemented using the OpenMP standard. This standard for threading is supported by most compiler vendors by now. Some still compilers only support it in their development versions right now. To compile LIGGGHTS with hybrid parallelization we need additional compiler flags and additional implementation files which replace some core components of the usual LIGGGHTS integration loop with threaded versions.

cd LIGGGHTS-PFM/
git submodule init
git submodule update
cd lib/zoltan/
mkdir BUILD
cd BUILD
../configure
make everything
make install

cd LIGGGHTS-PFM/src/
make -j 4 hybrid

Basic Usage¶

Using this new parallelization of LIGGGHTS requires the compilation of a LIGGGHTS binary as mentioned in the previous section. This version of LIGGGHTS supports additional styles and fixes which all end with an additional /omp suffix.

package omp 8 force/neigh thread-binding verbose

partitioner_style zoltan RCB_REUSE 1

pair_style gran/omp model hertz tangential history

fix cadMix1 all mesh/surface/omp file meshes/Mixer.stl type 1

fix meshes all wall/gran/omp model hertz tangential history mesh n_meshes 12 meshes cadShaft cadBlade1 cadBlade2 cadBlade3 cadBlade4 cadMix1 cadMix2 cadMix3 cadMix4 cadMix5 cadMix6 cadDrum

fix gravi all gravity/omp 9.81 vector 0.0 0.0 -1.0

fix integr nve_group nve/sphere/omp
